Simplificación de Circuitos Mixtos

Reducción de Circuitos Mixtos

La mayoría de los circuitos mixtos se parecen al que está abajo, aunque algunos son mucho mas complejos. Ya sea un circuito sencillo o uno que parezca ser muy complejo y difícil de analizar, no tengas miedo de abordar estos circuitos en lo que respecta a los cálculos matemáticos.

Circuito Mixto. – Formación para la Industria 4.0

Fuente: elaboración propia

Primero tienes que identificar las partes del circuito que están conectadas en serie y las que están en paralelo para poder aplicar selectivamente las reglas de serie y paralelo según sea necesario. Una vez aplicadas estas reglas lograrás tener un circuito reducido y podrás determinar lo que está sucediendo con el voltaje, la intensidad, etc.

*Es recomendable siempre iniciar la reducción de un circuito mixto desde el lado opuesto de la fuente de voltaje

En este ejemplo se comenzará la reducción con las resistencias R3 y R4, que se encuentran conectadas en paralelo. Aplicando la fórmula de resistencia equivalente en circuitos en paralelo al que llamaremos Ra, y se obtiene lo siguiente:

solucion 4

Fuente: elaboración propia

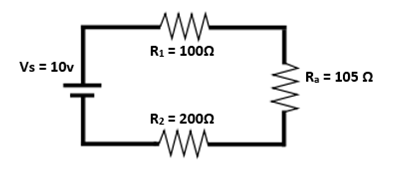

Con esta primera reducción se obtiene el siguiente circuito equivalente:

mixto 7

Fuente: elaboración propia

Ahora se encuentran tres resistencias en serie R1, R2 y la resistencia Ra que obtuvimos de simplificar las resistencias 3 y 4 en paralelo, por lo que se procede a simplificarlas aplicando la fórmula de resistencia equivalente en circuitos en serie. Con esta simplificación ya se consiguió reducir el circuito mixto a una sola resistencia equivalente que representa la resistencia total del circuito inicial,

Rt = R1 + R2 + Ra = 100Ω + 200Ω + 105Ω = 405Ω

Interacción para recuperación del conocimiento

Como ya se describió para resolver los circuitos mixtos es necesario saber identificar las partes que están en serie y las que están en paralelo, para así poder simplificar el circuito. Para revisar que tan bueno eres diferenciando los dos tipos de conexiones te presento la siguiente actividad.
